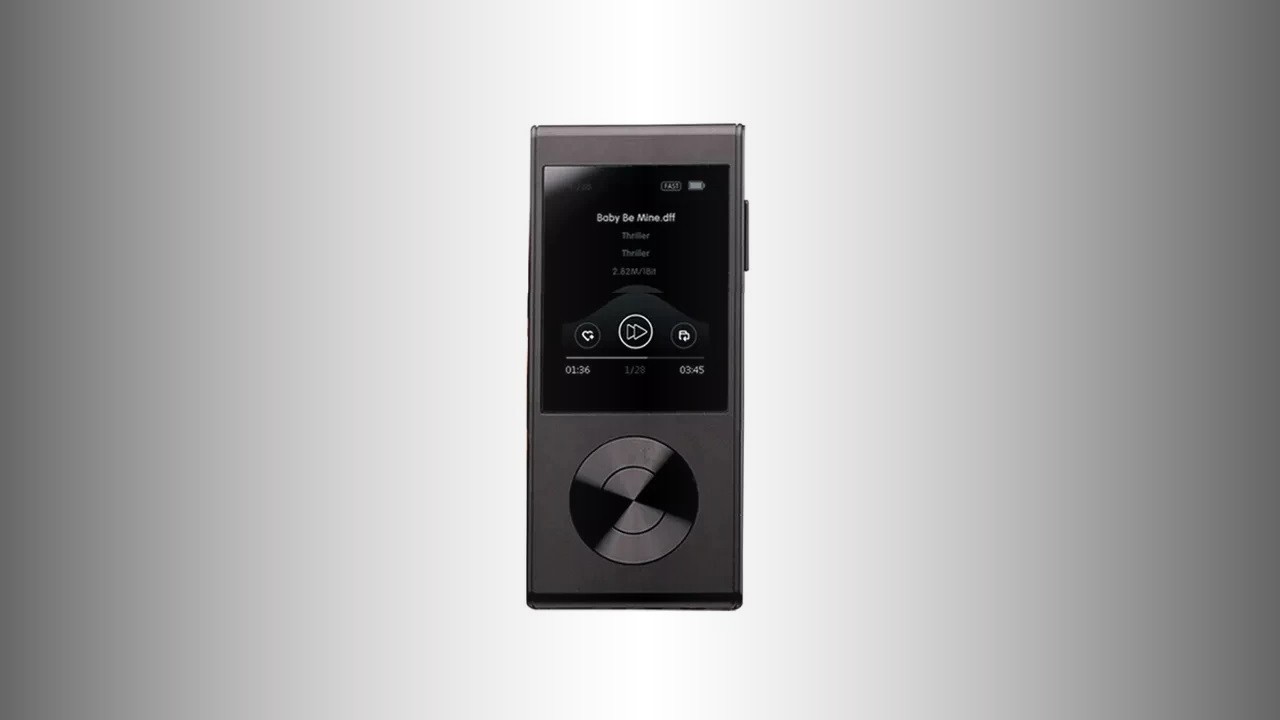

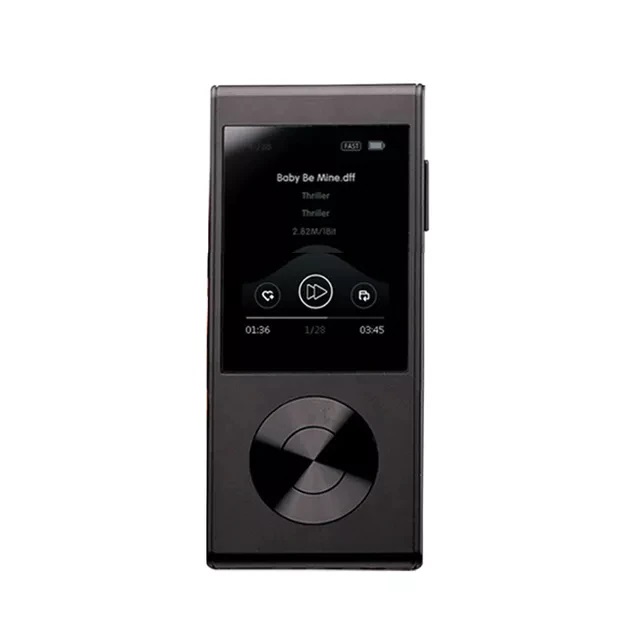

M1P is the 3rd generation of the aune M1 series of portable music players. Thanks to the freescale “” 600M processor and hardware decoding system, it managed to support 32bit/768k and DSD512 decoding. It also uses FPGA algorithm and DAC clock synchronization technology. The Bluetooth version supports Bluetooth data reception and transmission in HD format. AUNE M1P is a master tape level portable music player that focuses solely on sound.
Specifications of AUNE M1P
Recommended headphone impedance: 8-600 ohms
THD+N: 0.00021%@1kHz 3.5 mm
Power: 130 MW at 32 ohms, BAL: 280 MW at 32 ohms
DNR: 120 dB
Noise: 2.5uVrms
MAXIMUM level : 4.57Vrms@BAL 2.5 mm 4.4 mm
2.2Vrms@3.5mm
Supported formats:
WAV: 16 bit | 24 bit| 32bit
-44.1K/48K/88.2K/96K/176.4K/192K/352.8K/384K/705.6K/768K
WAV+
FLAC: 16bit|24 bit- 44.1K/48K/88.2K/96K/176.4K/192K
DSD: DSF/DFF/ISO(DSD64/128/256/DSD512)
APE: 16bit/44.1K Normal
MP3/ALAC/AAC/AIFF/AIF
Bluetooth: Bluetooth5.0; Reception and transmission support aptX HD
Battery:
Continuous playback 6 hours+ (16bit/44.1K; screen locked)
Maximum charging current: 1.3A. Adapters with a voltage of 1.5 A or higher are recommended. Outputs: 4.4mm balanced headphone jack, 2.5mm balanced headphone jack, 3.5mm
single-ended headphone jack Display screen: 2.4″ IPS screen Media: microSD card (supports up to 1T; formats: exFAT, FAT32)
