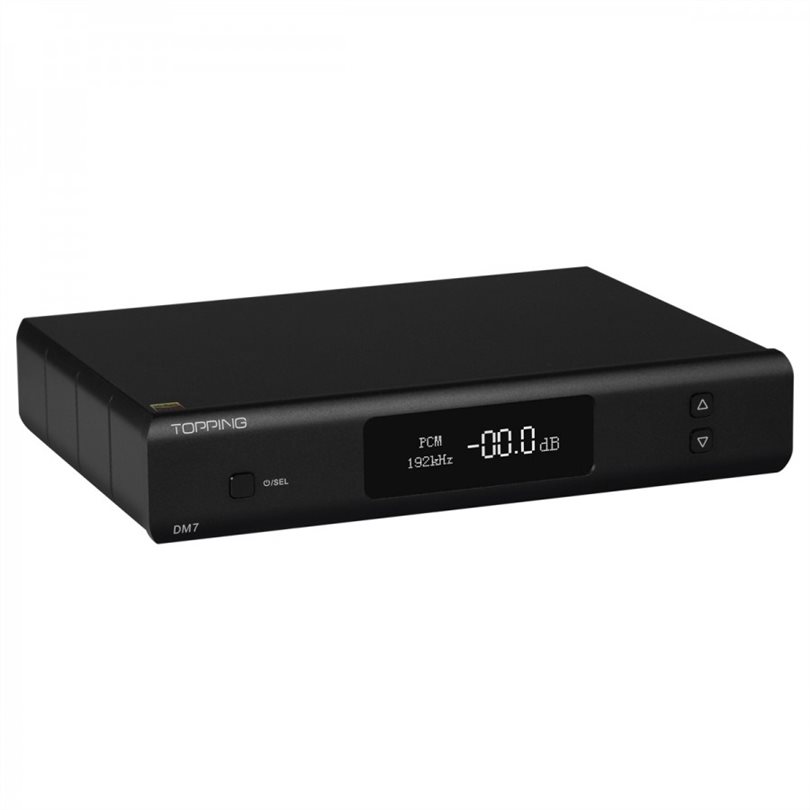

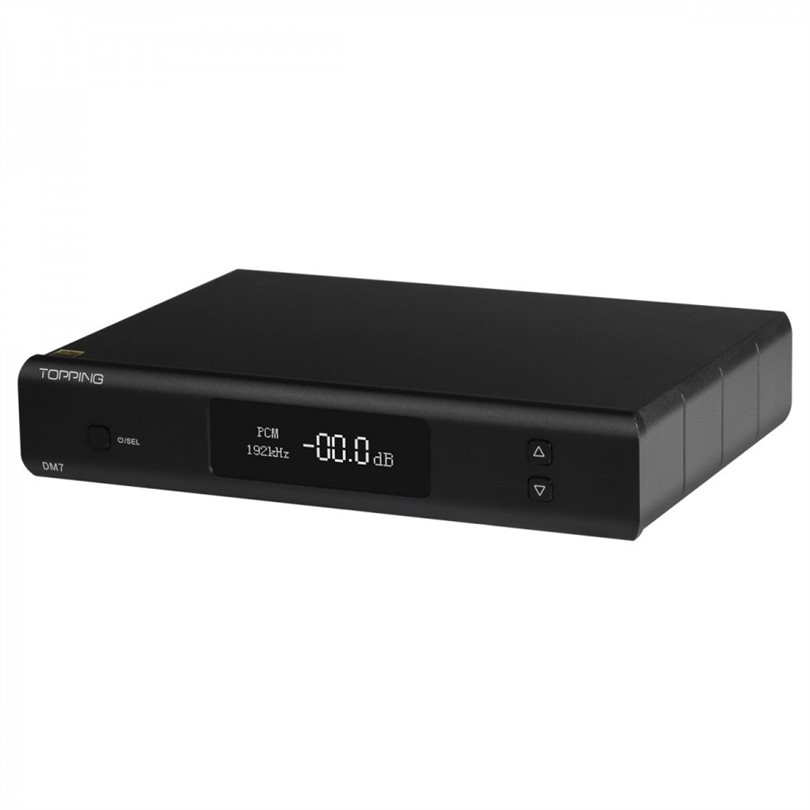

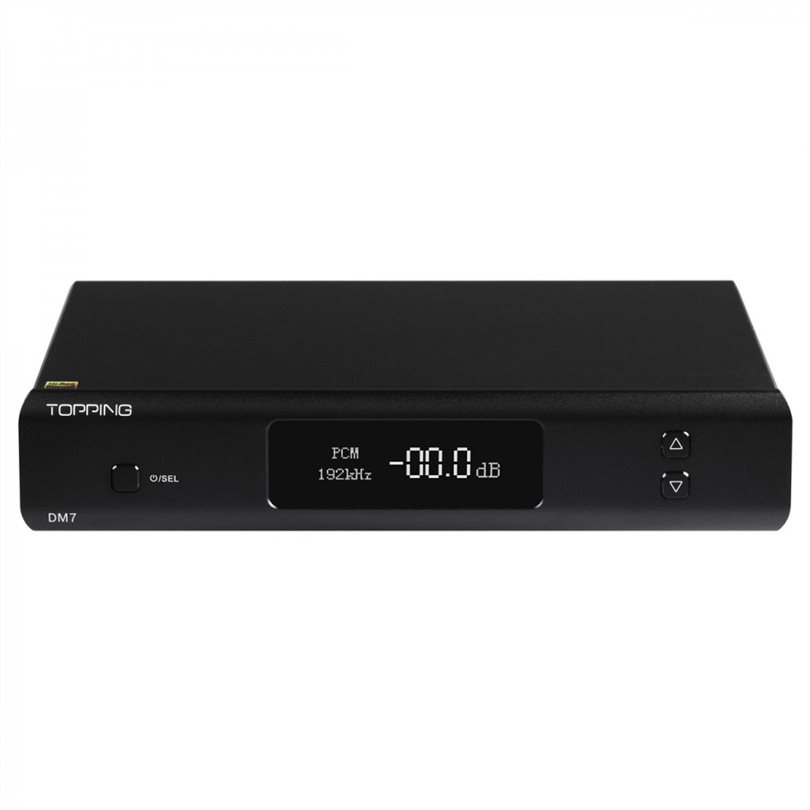

Topping has introduced the DM7 DAC , which provides 8 balanced audio outputs in 6.35 mm TRS jack format. Thus, it is supposed to enable the implementation of a powerful 7.1 sound system. An ESS ES9038Pro DAC chip is integrated into its conversion stage, capable of providing accurate and rich sound reproduction.
The DM7 supports PCM audio streams up to 32-bit 192 kHz, as well as native DSD up to DSD128 and DoP64, thus covering the vast majority of audio streams in use.

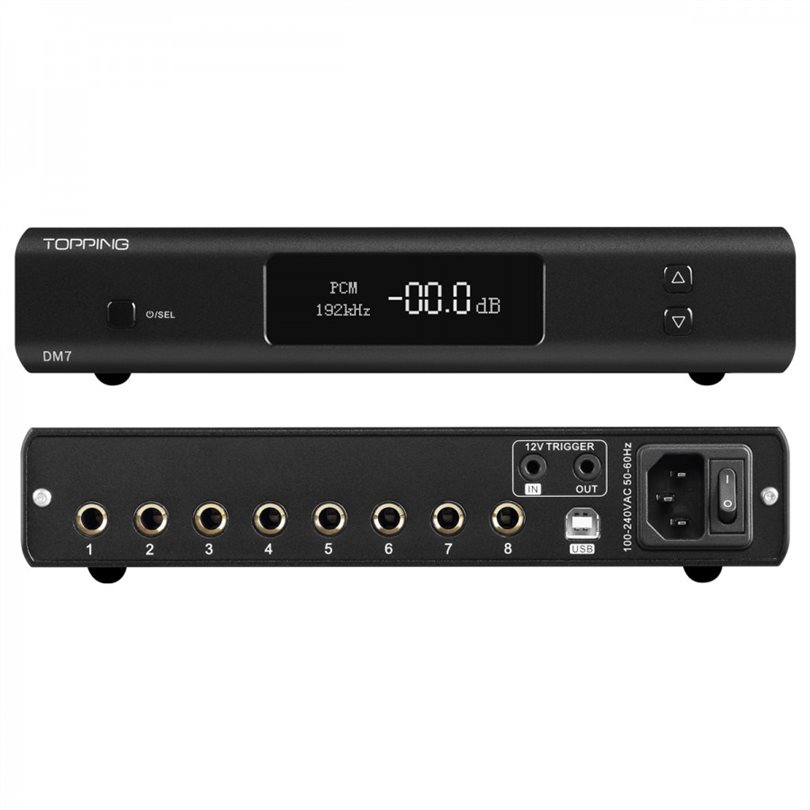

Topping DM7 offers simple and efficient connection. Input is via the USB-C port and output is via a series of eight balanced 6.35mm TRS jacks. These connectors allow the integration of a true 7.1 system.
The Topping DM7 DAC stage is equipped with the excellent ES9038Pro DAC chip. It provides a high level of sound reproduction, characterized by great accuracy and richness.
Characteristics of Topping DM7:
- Product Type: 8 Channel DAC
- DAC chip: ESS ES9038Pro
- Inputs: 1x USB-B
- Outputs: 8x balanced TRS Jack 6.35 mm
- 12V trigger: Input/Output
- Supported sample rates: PCM up to 32bit 192kHz/native DSD up to DSD128/DSD DoP64
- THD+N: 0.00009% @ A-Weighting, 1kHz/ 0.0002% @ 90kBw, no-weighting, 20Hz-20kHz
- SNR: 130 dB @ A-Weighting, 1 kHz
- Dynamic Range: 130 dB @ A-Weighting, 1 kHz
- Frequency response: 20 Hz – 40 kHz (±0.1 dB)
- Output Level: 4Vrms @ 0dBFS (4V mode) / 5Vrms @ 0dBFS (5V mode)
- Noise: 1.5 µVrms
- Crosstalk: -143 dB at 1 kHz
- Channel balance: 0.3 dB
- Output impedance: 100 ohms
- Supply voltage: 100/240 VAC 50-60 Hz
- Dimensions: 222 x 160 x 45 mm
- Black color
